Atomic Red Team

Atomic Red Team is a library of tests mapped to the MITRE ATT&CK framework, provided by Red Canary. With this Extension, LimaCharlie users can use Atomic Red Team to quickly, portably, and reproducibly test their environments.

Find more information about it here.

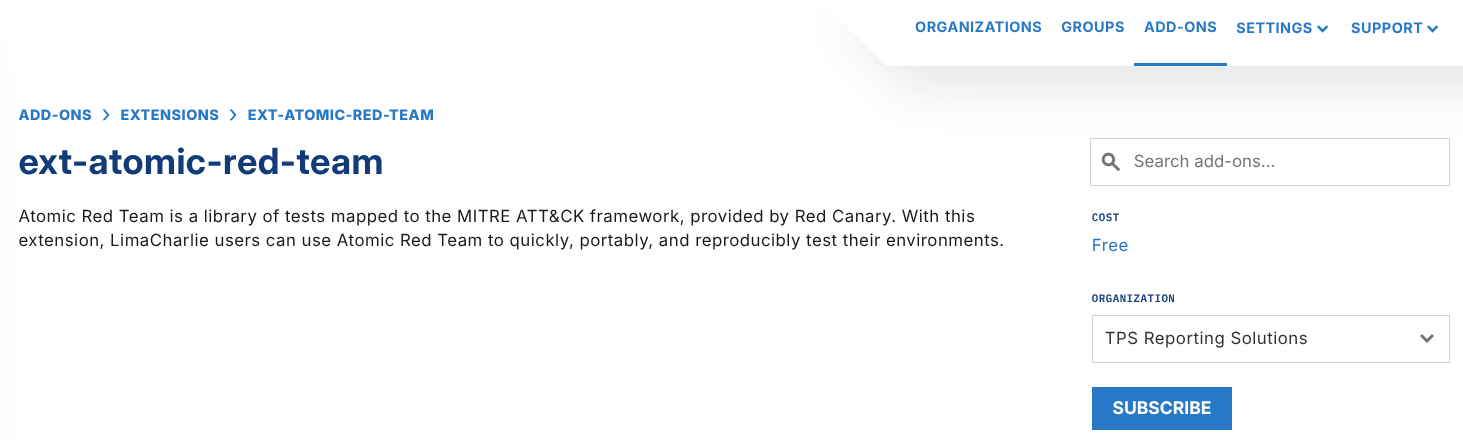

Enabling the Atomic Red Team Extension

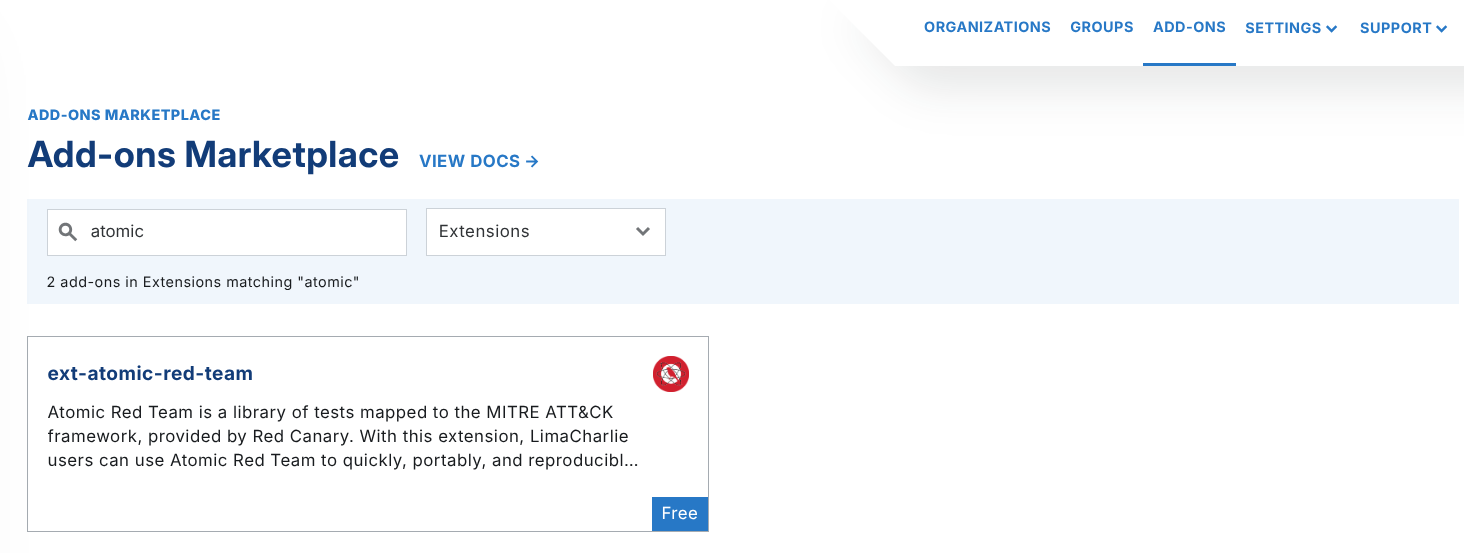

Enabling Atomic Red Team can be done within the LimaCharlie Marketplace, or at this link.

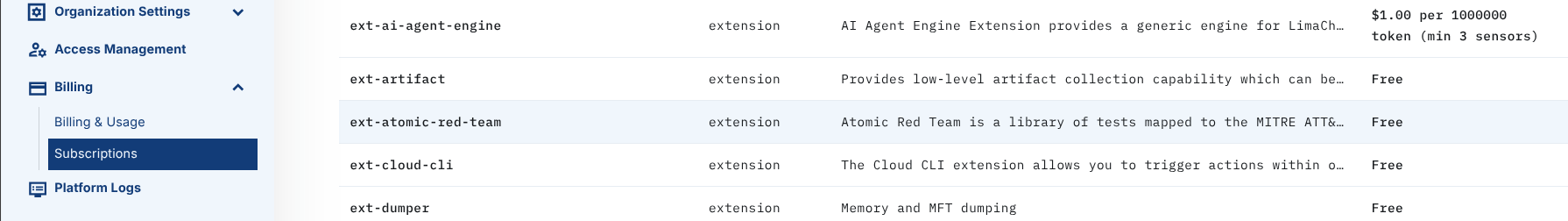

Under the Organization dropdown, select a tenant (organization) you want to subscribe to Atomic Red Team and click subscribe.

Please note that Extensions are applied on a per-tenant basis. If you have multiple organizations you want to subscribe to Atomic Red Team, you will need to subscribe each organization to the extension separately.

Supported Platforms

The extension supports sensors on Windows, Linux, and macOS. Sensors must be online for tests to run.

On Linux and macOS, the extension installs PowerShell Core (pwsh) automatically during the Prepare step if it is not already present.

Three-Step Workflow

The extension uses a three-step workflow: Prepare Host → Run Tests → Cleanup Host. This matches how the upstream Atomic Red Team project is intended to be used.

Step 1: Prepare Host

Before running any tests, you must prepare the target sensor. This installs the Atomic Red Team framework and its dependencies.

What it does:

  • Windows: adds a Windows Defender exclusion for C:\AtomicRedTeam (best-effort — Tamper Protection may block it), installs NuGet, the powershell-yaml module, and the Invoke-AtomicRedTeam framework with atomics.
  • Linux: installs PowerShell Core via the system package manager (apt/dnf), then installs the framework to /opt/AtomicRedTeam.
  • macOS: installs PowerShell Core via the official .pkg installer, then installs the framework to /opt/AtomicRedTeam.

You only need to prepare a host once. After that, you can run as many tests as you want.

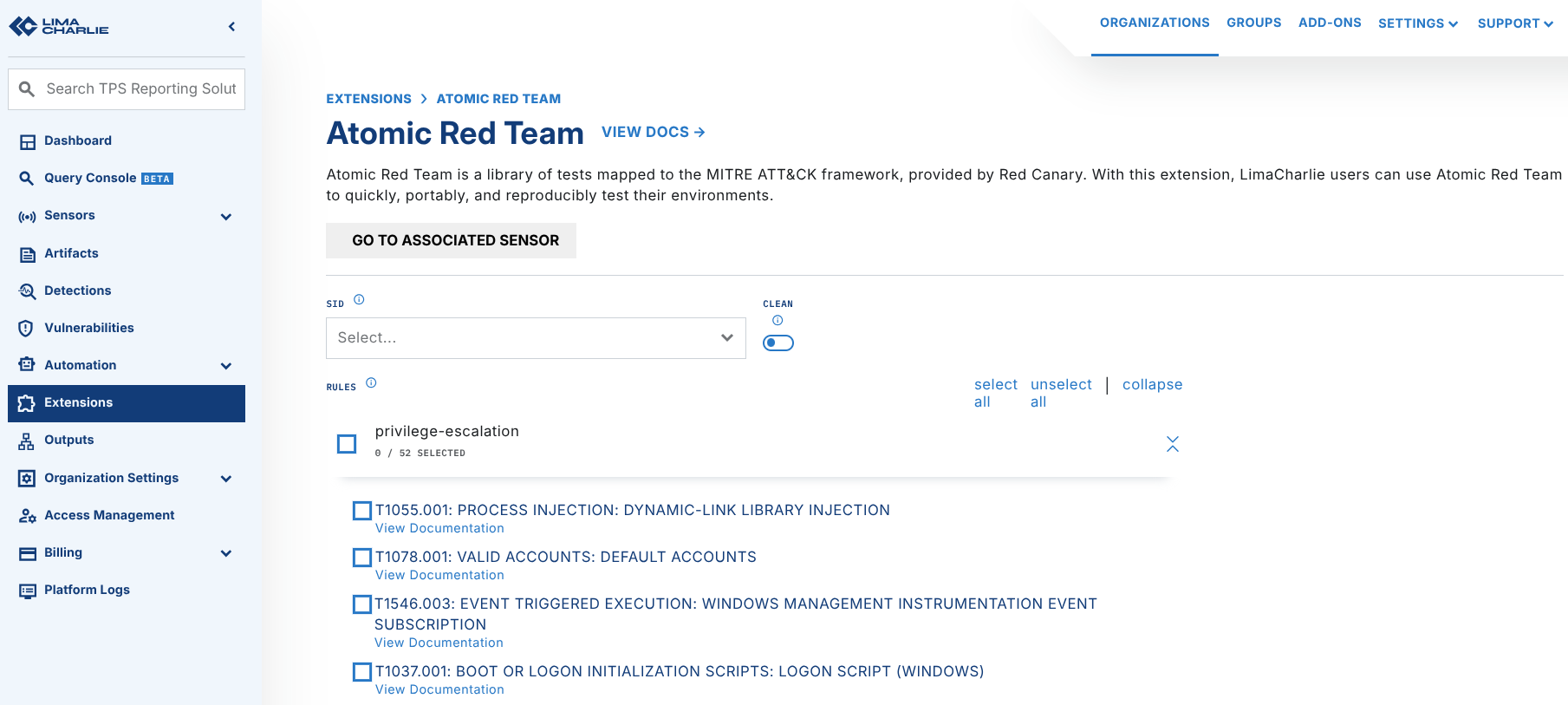

Step 2: Run Tests

Select one or more MITRE ATT&CK technique IDs from the dropdown and click Run. Tests execute sequentially — each test checks prerequisites, installs them if needed, executes the technique, and optionally runs the atomic cleanup step.

The Clean option controls whether each test's atomic cleanup runs after execution (reverting technique-specific changes). This is separate from the host-level Cleanup step.

If multiple tests are selected, they are chained automatically. Each test completion triggers the next via a callback. A single job_id tracks the entire run.

Step 3: Cleanup Host

When you are done testing, run Cleanup to reverse the changes made by Prepare:

  • Windows: removes the Defender exclusion and deletes C:\AtomicRedTeam.
  • Linux/macOS: deletes /opt/AtomicRedTeam.
  • All platforms: uninstalls the powershell-yaml PowerShell module.

Cleanup is best-effort — if some components can't be removed (e.g., files locked), it reports partial success with details.

Checking Results

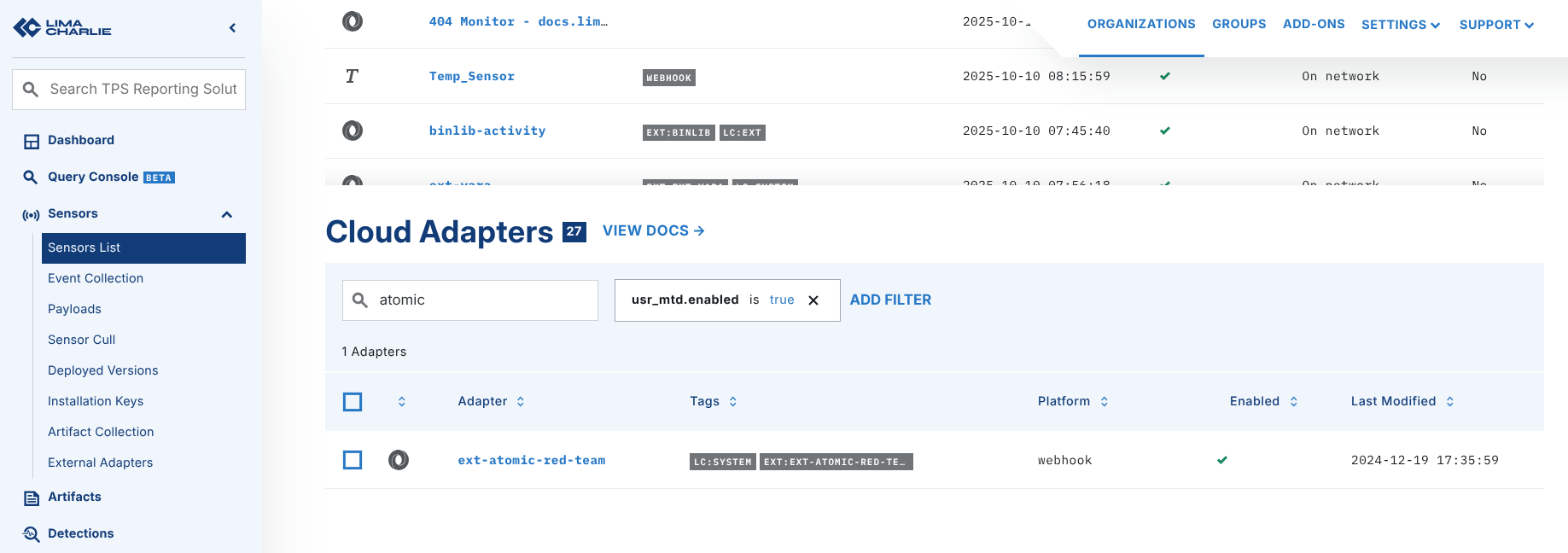

When the extension is enabled, you will see an Adapter named ext-atomic-red-team. This adapter receives all extension activity as webhook events:

Event When
prepare_started / prepare_success / prepare_failed Prepare Host lifecycle
run_started / test_result / run_success / run_failed Test execution (one test_result per technique)
cleanup_started / cleanup_success / cleanup_failed Cleanup Host lifecycle

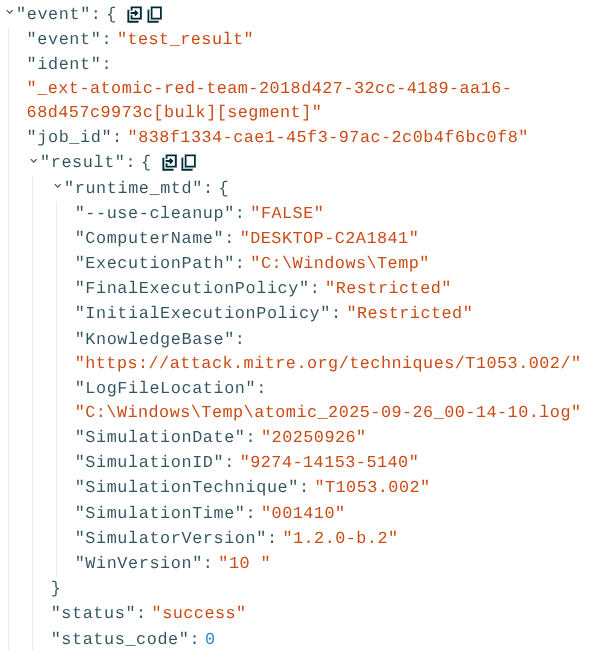

Each event includes a job_id for correlation and the sensor ID. The test_result event includes the technique ID, execution status, and a base64-encoded log of the test output.

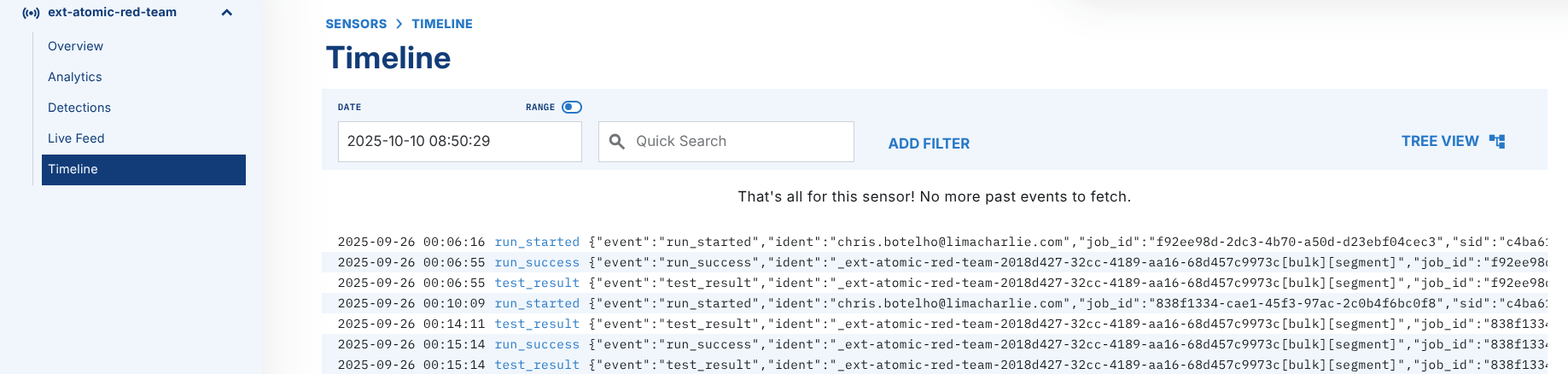

Within the Timeline of the sensor you ran a test on, you will also find RECEIPT events that contain the raw execution output (STDOUT, STDERR, exit code).

Between webhook events in the ext-atomic-red-team adapter and RECEIPT events on the sensor, you can correlate and identify successful and failed tests.

Notes

  • The Defender exclusion on Windows is best-effort. If Tamper Protection blocks it, the extension still installs the framework and reports a warning. Defender may quarantine some atomic test files.
  • Some techniques include many sub-tests (e.g., T1082 on Windows has 17+). Individual sub-tests may time out after 120 seconds — this is an upstream Invoke-AtomicTest default, not a limitation of the extension.
  • The list of available techniques is loaded from the upstream Atomic Red Team index at extension startup.
