Building Extensions

An Extension is a small HTTPS service that LimaCharlie calls over webhooks. You host it and own the code; LimaCharlie handles multi-tenancy, credentials, configuration storage and the user interface.

Feel free to reach out on the community forum if you get stuck.

Why Extensions?

• Multi-tenancy — organizations subscribe to your extension, and the same code serves all of them.
• Credentials handling — you never store organization credentials. Every callback arrives with a LimaCharlie SDK already authenticated for the relevant organization, scoped to the permissions your extension declared. Third-party credentials are handled through secrets, which are resolved into the request for you.
• Configuration — LimaCharlie stores a configuration object per organization and asks you to validate changes.
• User interface — the schema your extension advertises is rendered into a working UI automatically. You can build your own instead, but you do not have to.

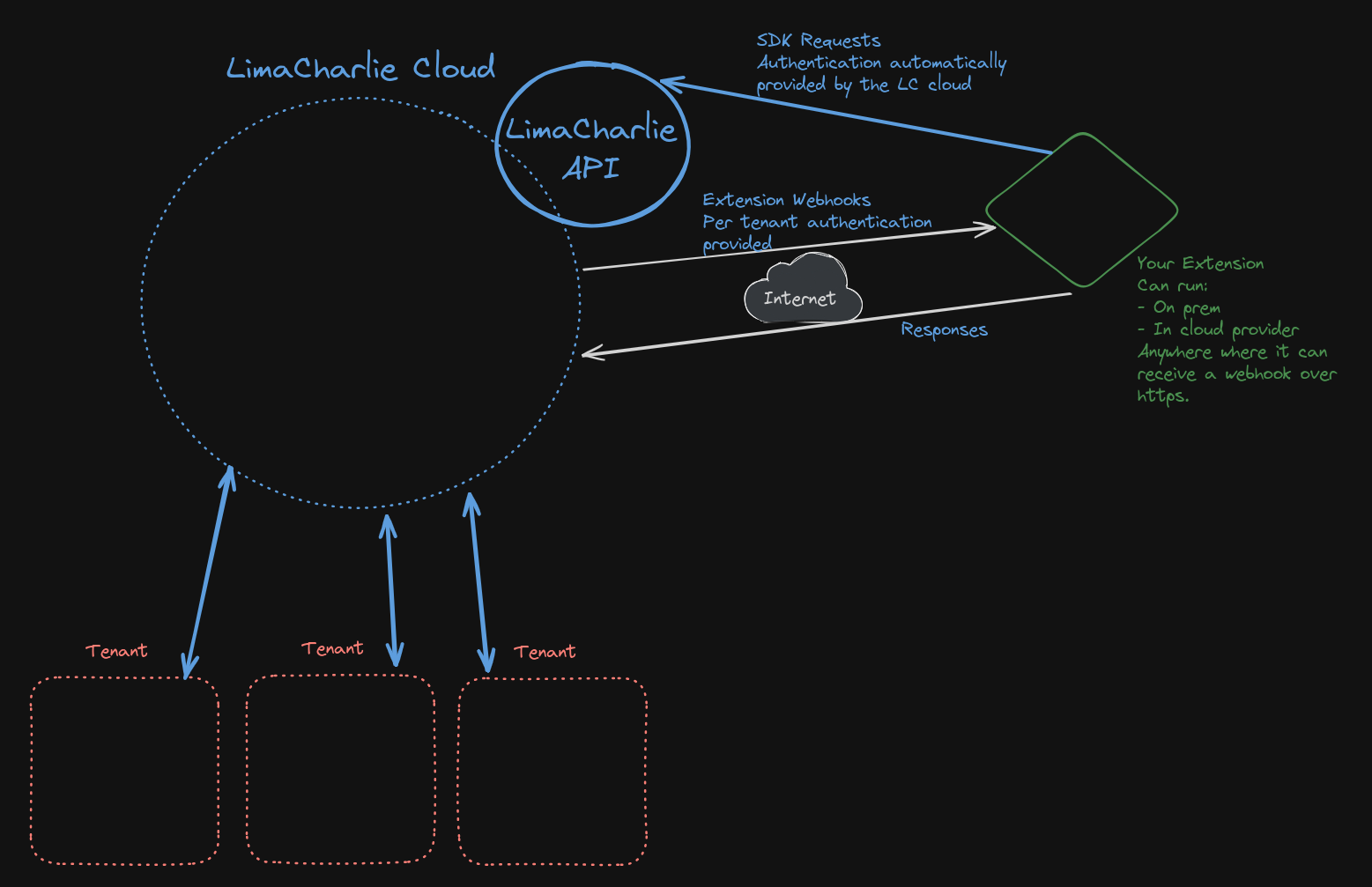

How It Works

flowchart LR
    A["User / D&R rule<br/>CLI / another extension"] --> B["LimaCharlie"]
    B -->|"signed HTTPS webhook"| C["Your extension"]
    C -->|"response"| B
    C -->|"pre-authenticated SDK"| B

Your service needs to be reachable over HTTPS with a certificate chaining to a public root CA. Anything that can serve HTTP works — Google Cloud Run, Cloud Functions, AWS Lambda, ECS, or your own hardware. We recommend a managed, highly available platform.

The full set of guarantees — timeouts, retries, size limits, signing — is in the Runtime Contract.

Public and Private Extensions

Anyone can build an extension. Subscribing any organization to any extension requires the billing.ctrl and user.ctrl permissions on that organization. A private extension additionally can only be subscribed by its owner, so while it is private you can only install it into organizations you can administer yourself.

To make an extension public, and optionally monetize it, contact answers@limacharlie.io. Once public, it is visible to and subscribable by everyone.

Install

GoPython

go get github.com/refractionPOINT/lc-extension

pip install lcextension

The Go SDK is the more complete of the two and is what the examples here use; see the Python notes for the current gaps.

A Complete Extension

This is a working extension. It exposes one user-facing action that lists sensors matching a selector, stores a small configuration, and reports a billing metric per call.

main.go

// A complete, minimal LimaCharlie Extension.
//
// It exposes one user-facing action, "list_sensors", which uses the
// pre-authenticated SDK handed to every callback to list the sensors matching
// a selector. It also stores a small configuration and reports a billing
// metric for each call.
package main

import (
    "context"
    "fmt"

    "github.com/refractionPOINT/go-limacharlie/limacharlie"
    "github.com/refractionPOINT/lc-extension/common"
    "github.com/refractionPOINT/lc-extension/core"
    "github.com/refractionPOINT/lc-extension/server/webserver"
)

// listSensorsRequest is the typed form of the "list_sensors" parameters. The
// framework unmarshals the incoming request data into a copy of this struct,
// so the fields here must match the parameter names in the schema below.
type listSensorsRequest struct {
    Selector string `json:"selector"`
}

// extensionConfig is the typed form of the extension's configuration.
type extensionConfig struct {
    MaxResults int `json:"max_results"`
}

// buildExtension returns the extension, ready to Init. Keeping construction in
// a function (rather than inline in main) is what lets the tests build the
// same extension the server runs.
func buildExtension(secretKey string) *core.Extension {
    logger := &limacharlie.LCLoggerGCP{}

    ext := &core.Extension{
        ExtensionName: "my-extension",
        SecretKey:     secretKey,

        // Describes the extension's configuration. LimaCharlie renders this as
        // a form and stores the result in the extension_configuration hive.
        ConfigSchema: common.SchemaObject{
            Fields: map[common.SchemaKey]common.SchemaElement{
                "max_results": {
                    Label:        "Maximum results",
                    Description:  "Largest number of sensors to return in one call.",
                    DataType:     common.SchemaDataTypes.Integer,
                    DefaultValue: 100,
                    DisplayIndex: 1,
                },
            },
            Requirements: [][]common.SchemaKey{},
        },

        // Describes the actions the extension exposes. LimaCharlie enforces
        // this schema before a request ever reaches the callbacks below.
        RequestSchema: common.RequestSchemas{
            "list_sensors": {
                Label:            "List sensors",
                IsUserFacing:     true,
                IsImpersonated:   false,
                ShortDescription: "list sensors matching a selector",
                LongDescription:  "Lists the sensors in this organization that match the given sensor selector.",
                Messages: common.StatusMessages{
                    InProgressMessage: "Listing sensors...",
                    SuccessMessage:    "Sensors listed.",
                    ErrorMessage:      "Could not list sensors.",
                },
                ParameterDefinitions: common.SchemaObject{
                    Fields: map[common.SchemaKey]common.SchemaElement{
                        "selector": {
                            Label:        "Sensor selector",
                            Description:  "Selector expression, or * for every sensor.",
                            DataType:     common.SchemaDataTypes.SensorSelector,
                            DefaultValue: "*",
                            DisplayIndex: 1,
                        },
                    },
                    // "selector" always has a value because it has a default,
                    // but declaring it required documents the contract and
                    // makes the UI mark the field.
                    Requirements: [][]common.SchemaKey{{"selector"}},
                },
                ResponseDefinition: &common.SchemaObject{
                    Fields: map[common.SchemaKey]common.SchemaElement{
                        "count": {
                            Label:       "Count",
                            Description: "Number of sensors matched.",
                            DataType:    common.SchemaDataTypes.Integer,
                        },
                        "hostnames": {
                            Label:       "Hostnames",
                            Description: "Hostnames of the sensors matched.",
                            DataType:    common.SchemaDataTypes.String,
                            IsList:      true,
                        },
                    },
                },
            },
        },
    }

    ext.Callbacks = core.ExtensionCallbacks{
        // Called whenever a user changes this extension's configuration.
        // Returning an error rejects the change.
        ValidateConfig: func(ctx context.Context, org *limacharlie.Organization, config limacharlie.Dict) common.Response {
            conf := extensionConfig{}
            if err := config.UnMarshalToStruct(&conf); err != nil {
                return errorResponse(err)
            }
            if conf.MaxResults < 0 {
                return errorResponse(fmt.Errorf("max_results cannot be negative"))
            }
            return common.Response{}
        },

        RequestHandlers: map[common.ActionName]core.RequestCallback{
            "list_sensors": {
                RequestStruct: &listSensorsRequest{},
                Callback:      onListSensors,
            },
        },

        // Registering a handler is what subscribes the extension to an event:
        // the Go framework advertises exactly the events named here.
        EventHandlers: map[common.EventName]core.EventCallback{
            common.EventTypes.Subscribe: func(ctx context.Context, params core.EventCallbackParams) common.Response {
                logger.Info(fmt.Sprintf("subscribed: %s", params.Org.GetOID()))
                return common.Response{}
            },
            common.EventTypes.Unsubscribe: func(ctx context.Context, params core.EventCallbackParams) common.Response {
                logger.Info(fmt.Sprintf("unsubscribed: %s", params.Org.GetOID()))
                return common.Response{}
            },
        },

        // Required. The framework calls this directly, without a nil check, on
        // paths such as an invalid webhook signature. Leaving it unset will
        // panic the extension on the first malformed request it receives.
        ErrorHandler: func(err *common.ErrorReportMessage) {
            logger.Error(fmt.Sprintf("error reported for %s: %s", err.Oid, err.Error))
        },
    }

    return ext
}

func onListSensors(ctx context.Context, params core.RequestCallbackParams) common.Response {
    request := params.Request.(*listSensorsRequest)

    conf := extensionConfig{}
    if err := params.Config.UnMarshalToStruct(&conf); err != nil {
        return errorResponse(err)
    }

    // params.Org is the LimaCharlie SDK, already authenticated for the
    // organization this request belongs to. The extension never stores or
    // handles organization credentials itself.
    sensors, err := params.Org.ListSensorsFromSelector(request.Selector)
    if err != nil {
        // Transient failures should be retriable so the platform tries again.
        return common.Response{Error: err.Error()}
    }

    hostnames := []string{}
    for _, sensor := range sensors {
        if conf.MaxResults > 0 && len(hostnames) >= conf.MaxResults {
            break
        }
        hostnames = append(hostnames, sensor.Hostname)
    }

    return common.Response{
        Data: limacharlie.Dict{
            "count":     len(hostnames),
            "hostnames": hostnames,
        },
        // Optional. Metrics are namespaced as "<extension-name>:<sku>" and
        // deduplicated on the idempotency key.
        Metrics: &common.MetricReport{
            IdempotentKey: params.IdempotentKey,
            Metrics: []common.Metric{
                {Sku: "sensor_listings", Value: 1},
            },
        },
    }
}

// errorResponse marks an error as permanent so the platform stops retrying it.
// Anything the extension cannot succeed at on a later attempt -- bad
// configuration, invalid input -- belongs here.
func errorResponse(err error) common.Response {
    notRetriable := false
    return common.Response{Error: err.Error(), Retriable: &notRetriable}
}

func main() {
    ext := buildExtension("YOUR_SHARED_SECRET")
    if err := ext.Init(); err != nil {
        panic(err)
    }
    webserver.RunExtension(ext)
}

Points worth noticing, because each corresponds to something that bites people later:

• buildExtension is a function. That is what lets tests construct the same extension the server runs. See Testing.
• ErrorHandler is set. The Go framework calls it without a nil check — including when a request arrives with a bad signature — so an extension that leaves it unset panics on the first malformed request it receives.
• The request struct field names match the schema parameter names. The framework unmarshals request data into a copy of RequestStruct using the JSON tags; a mismatch produces a zero value rather than an error.
• params.Org is already authenticated. No credential handling, no key storage.
• Permanent errors are marked non-retriable. Otherwise the platform retries them three times with backoff.
• Event handlers are what subscribe you to events. In Go, the advertised event list comes from the EventHandlers map, not from the RequiredEvents field.

Registering the Extension

Create the definition from your published add-ons page.

Field	Meaning
Destination URL	The HTTPS URL your extension is reachable at
Shared Secret	Used to sign webhooks so your extension can verify they came from LimaCharlie. Make it random and at least 32 characters
Permissions	What your extension may do in each subscribed organization. Use as few as possible
Required Extensions	Other extensions yours depends on. Users are prompted to subscribe to them
Extension Flairs	Modifiers, described below

Once registered, LimaCharlie fetches your schema. Subscribe an organization to it and you will receive a subscribe event; from then on that organization can interact with the extension.

Heartbeats

The protocol defines a heartbeat message, and both SDKs answer it, but LimaCharlie does not currently send heartbeats on a schedule. Do not rely on them as a liveness signal or as a way to keep a serverless instance warm.

Flairs

The segment flair isolates your extension's resources so it can only see and modify the things it created — rules, configurations and so on. It is the right default for most extensions, and you should leave it on unless you specifically need to read or modify resources your extension did not create.

The bulk flair marks an extension as expecting a high volume of API calls. Note that extension API keys already receive the platform's highest request quota by virtue of being extension keys, so setting this flair does not currently change the quota an extension gets.

The Schema

The schema describes your configuration and your actions. It drives the generated UI, and the platform enforces it before your extension is called — unknown parameters are rejected, types are checked, defaults are applied and secrets are resolved.

{
  "config_schema": {
    "fields": { },
    "requirements": null
  },
  "request_schema": {
    "dir_list": {
      "is_impersonated": false,
      "is_user_facing": false,
      "short_description": "directory listing",
      "long_description": "directory listing",
      "parameters": {
        "fields": { },
        "requirements": null
      }
    },
    "refresh": {
      "is_impersonated": false,
      "is_user_facing": true,
      "short_description": "refresh data",
      "long_description": "refresh data",
      "parameters": {
        "fields": { },
        "requirements": null
      }
    }
  },
  "required_events": [
    "subscribe",
    "unsubscribe"
  ]
}

When starting out, use the simplest data type that fits each field — string, bool, json — and get the whole thing working end to end. Refine the types afterwards so the UI adapts. Full details are in Schema & Data Types.

Config Schema

An optional description of the extension's configuration, stored per organization as a Hive record in extension_configuration. Not every extension needs one.

Request Schema

A map of action name to definition. The important fields:

• is_user_facing — whether the action appears in the UI. It does not restrict access: an action that is not user-facing is still callable through the API, from a D&R rule, and as a supported_action. Use it to hide actions your extension calls on itself.
• is_impersonated — whether the action runs as the calling user rather than as the extension. See impersonation.
• parameters — the fields the action accepts.
• short_description, long_description, label — how the action is presented.
• messages — in_progress, success and error text shown to the user.
• response — an optional description of what the action returns. Skip it until you are refining the UI.

Callbacks

Configuration validation — called when a user changes the configuration. Return an error to reject the change. This is the only guard users have against a broken configuration, so validate properly rather than accepting everything.

Events — platform-generated occurrences: subscribe, unsubscribe, and update (once every 24 hours, per organization). update is where extensions reconcile the resources they manage.

Requests — the actions users, D&R rules and other extensions invoke. One callback per action.

Testing

Both halves of an extension can be simulated locally — the platform calling in, and the LimaCharlie API being called out to — so a full lifecycle runs as a unit test with no cloud resources. See Testing Extensions.

Simplified Frameworks

For common shapes of extension, the Go SDK provides ready-made frameworks that leave you only the interesting part to write.

D&R Rules

dr.go packages D&R rules as an extension, making it easy to distribute and update rules across many organizations. Implement GetRules(), returning map[namespace]map[ruleName]RuleInfo; the framework handles subscription, recurring updates and cleanup. It also gives users a configuration for disabling new rules by default and for a global suppression period.

Lookups

The same idea for Lookups. See the example.

CLI

cli.go wraps third-party command line tools so they can be driven from LimaCharlie, which is often the fastest way to bring bi-directionality to an integration. Register one or more tools with a handler, a credentials format and an example command, and the framework builds the schema, the UI and the execution plumbing around them.

Scaling Beyond One Service

For extensions that need isolation between organizations, the Cloud Run multiplexer is itself an extension that provisions a dedicated Cloud Run service per subscribed organization and proxies webhooks to it.

Next Steps

• Schema & Data Types — what the platform enforces, and every data type
• Building the User Interface — layouts and field presentation
• Testing Extensions — the simulator and mock API
• Runtime Contract — timeouts, retries, continuations, metrics, troubleshooting
