Sensor Cull¶

The Sensor Cull extension (ext-sensor-cull) deletes sensors that have not connected to your organization for a set number of days. It suits environments that enroll sensors repeatedly for short periods, such as autoscaling cloud fleets, VM templates and container nodes.

You define rules in the extension's configuration. Each rule picks a set of sensors (by tag, by selector, or both) and an inactivity limit in days. Once a day the extension checks every rule and deletes the sensors that match it and have been offline longer than its limit. You can also run all rules, or the rules with a given name, on demand.

Culling deletes sensors

A sensor deleted by a rule is removed from the organization. Scheduled runs do not ask for confirmation, and you cannot switch the extension to a dry-run mode. Check which sensors a rule's tag and selector match in the sensor list before you save it, and read Rule safety.

Enabling the extension¶

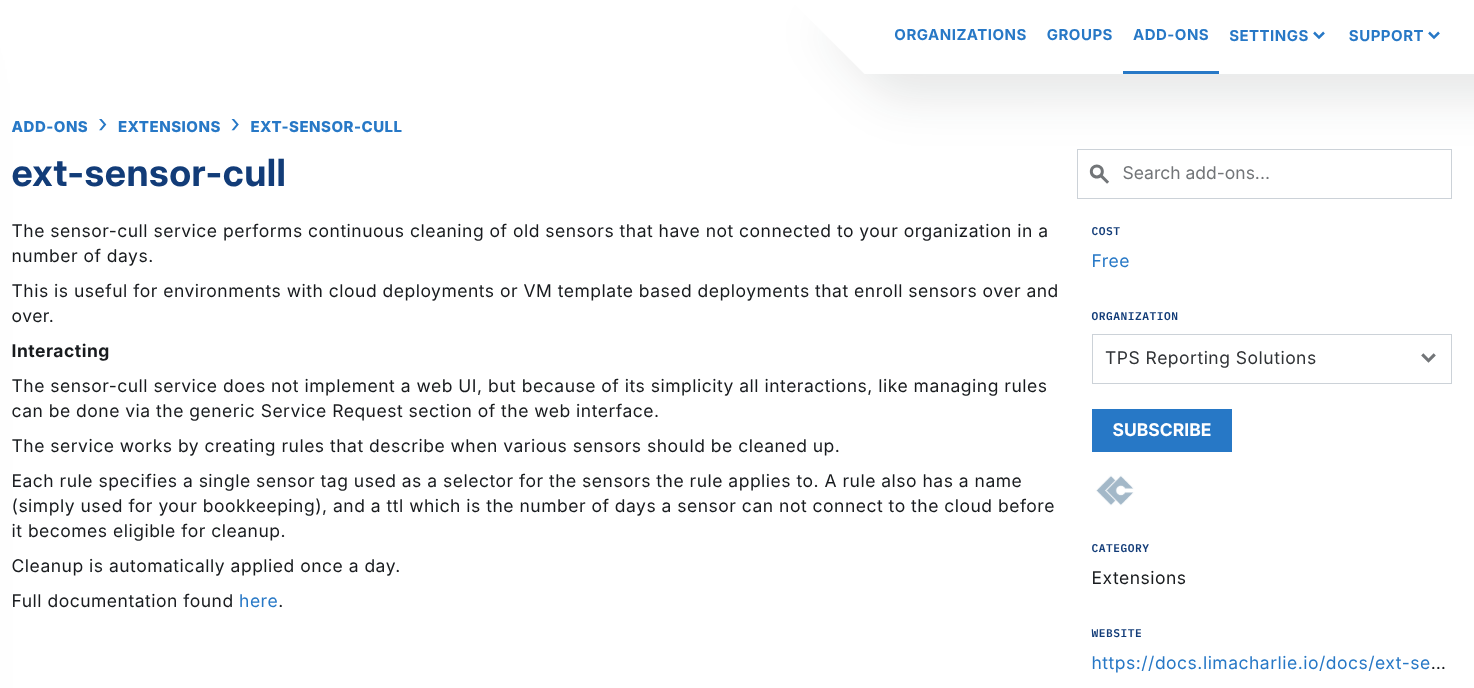

Subscribe to ext-sensor-cull from the Extensions page of the web UI, or with the CLI:

limacharlie extension subscribe --name ext-sensor-cull --oid <oid>

Subscribing installs a rule named sensor-cull-recurring in the dr-service hive. That rule schedules the daily run (see How it runs). Unsubscribing removes it.

Using the web UI¶

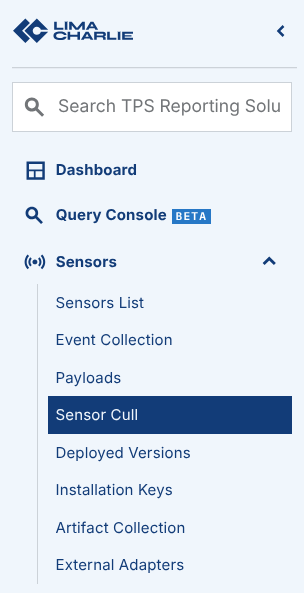

Once subscribed, a Sensor Cull page appears under Sensors in the sidebar. It lists the rules in a table with the columns Name, Tag, Selector and Inactivity limit.

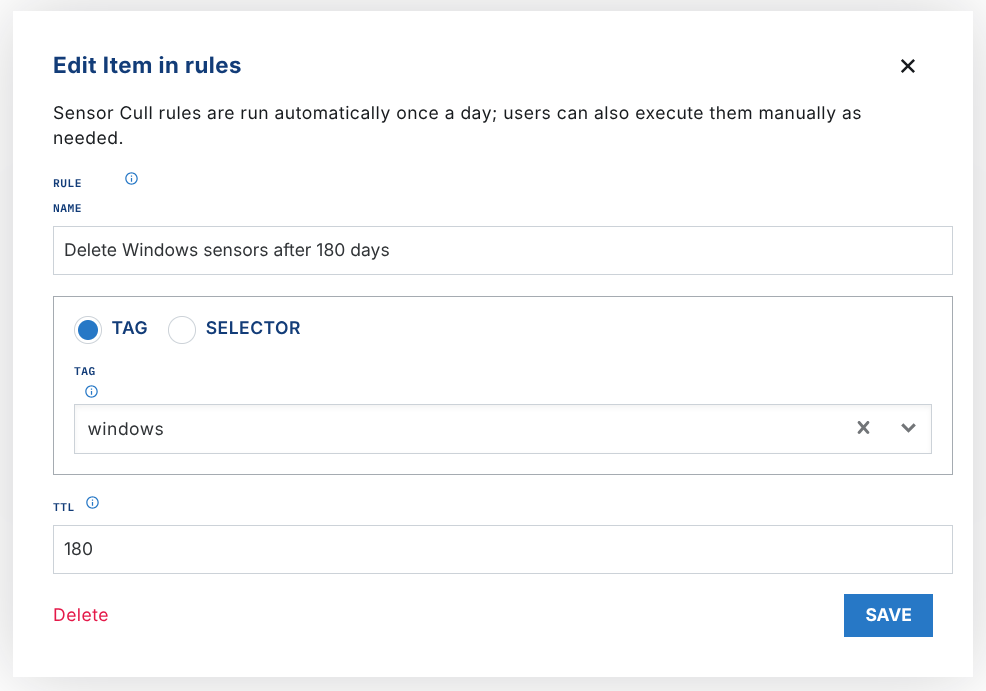

Add rule opens a form with a name, a tag, a selector and the days of inactivity. The name and the days are required. You must fill in the tag, the selector, or both. The form only accepts an inactivity limit of 1 day or more.
Run all rules (shown once at least one rule exists) asks for confirmation, then runs every rule immediately.
Each row has edit and delete actions.

Adding, editing and deleting rules needs the ext.conf.set permission. Run all rules needs ext.request.

Configuration¶

The rules live in the extension_config hive, in the record named ext-sensor-cull. The record's data is an object with one key, rules, a list of rule objects. Reading the record needs ext.conf.get; writing it needs ext.conf.set.

Field	Type	Required	Description
`rule_name`	string	Yes	Name of the rule. It is not unique: several rules may share a name.
`ttl`	integer	Yes	Days a sensor can stay unconnected before the rule deletes it. Use 1 or more (see Rule safety).
`tag`	string	One of `tag` or `selector`	Applies the rule to sensors that have this tag.
`selector`	string	One of `tag` or `selector`	A sensor selector expression that picks the sensors the rule applies to.

When a rule has both tag and selector, a sensor must match both. The extension rejects a configuration where a rule has no rule_name, or has neither tag nor selector. It does not check ttl.

Rules are positional. The extension identifies a rule by its place in the list, not by its name, so you can reuse a name across rules that target different sensors.

Infrastructure as code¶

The same configuration as it appears in an IaC definition or a Git Sync hives/extension_config.yaml file:

hives:
    extension_config:
        ext-sensor-cull:
            data:
                rules:
                    - rule_name: Delete ephemeral sensors after 7 days
                      tag: ephemeral
                      ttl: 7
                    - rule_name: Delete Linux sensors after 120 days
                      selector: plat == linux
                      ttl: 120
                    - rule_name: Delete Windows sensors after 90 days unless tagged vip
                      selector: plat == windows and "vip" not in tags
                      ttl: 90
            usr_mtd:
                enabled: true
                expiry: 0
                tags: []
                comment: ""

CLI¶

Put the data of the record in a file and set it:

# sensor-cull.yaml
rules:
  - rule_name: Delete ephemeral sensors after 7 days
    tag: ephemeral
    ttl: 7

limacharlie hive set \
  --hive-name extension_config \
  --key ext-sensor-cull \
  --input-file sensor-cull.yaml \
  --enabled \
  --oid <oid>

Dry-run a configuration against the extension's validation before writing it:

limacharlie hive validate \
  --hive-name extension_config \
  --key ext-sensor-cull \
  --input-file sensor-cull.yaml \
  --oid <oid>

Read the current configuration:

limacharlie hive get --hive-name extension_config --key ext-sensor-cull --oid <oid>

limacharlie extension config-get --name ext-sensor-cull and limacharlie extension config-set --name ext-sensor-cull --input-file sensor-cull.yaml read and write the same record.

Selectors¶

The extension builds one selector from the rule and asks the platform for the matching sensors:

Rule	Selector sent
`tag: linux`	`linux` in tags
`selector: plat == windows`	`(plat == windows)`
`tag: prod` and `selector: plat == linux`	`prod` in tags and (plat == linux)
`selector: "*"`	`*` (every sensor)
`tag: prod` and `selector: "*"`	`prod` in tags

The platform evaluates the selector with the same expression language used elsewhere, so every operator on that page works in a rule. A selector that excludes a tag is valid, for example "vip" not in tags, or plat == windows and "vip" not in tags to cull Windows sensors that do not carry the vip tag. A selector the platform cannot parse makes the run fail with an error and deletes nothing for that rule.

The inactivity test is separate from the selector. The extension compares each sensor's last-seen time with ttl itself, after the platform returns the matching sensors, so express the inactivity limit with ttl and not in the selector.

How it runs¶

Schedule. The sensor-cull-recurring rule responds to the 24h_per_org scheduling event and sends the extension a run request with no parameters, which runs every rule. LimaCharlie only generates 24h_per_org for organizations that had at least one sensor online in the last 7 days.
Inactivity test. For each sensor the rule selects, the extension compares the sensor's last-seen time (the alive value, in UTC) with the current time. The sensor is deleted when it was last seen more than ttl days ago. A sensor with no last-seen time is skipped.
Deletion. The extension deletes each sensor through the LimaCharlie API, using the API key it received when you subscribed, not your credentials. A sensor that matches several rules is deleted once per run.
Large organizations. The extension reads matching sensors 500 at a time and continues automatically until it has seen them all. Per-sensor failures are logged and reported as an error for the run, and the extension carries on with the other sensors.
No report. The extension does not emit an event or keep a list of the sensors it deleted.

Resource ACLs

The extension writes the sensor-cull-recurring rule with acl_scopes: ["*"]. On organizations that use Resource ACLs, * stands for the scopes the extension's own API key is a member of when the rule fires, so an administrator controls how far scheduled runs reach by adding the key to a scope or removing it. See Building Extensions.

Rule safety¶

ttl is not validated by the extension. A rule with ttl: 0, or without ttl, treats every matching sensor that is not connected right now as expired and deletes it on the next run. The web UI refuses a limit below 1 day, but the API, the CLI and IaC do not.
A rule that has only selector: "*" matches every sensor in the organization.
A deleted sensor that later tries to reconnect is refused and produces a deleted_sensor event. A rule can bring it back with undelete sensor, which would undo the cull.

Actions¶

The extension has one action, run. Rules are managed by writing the configuration, not through requests. It does not support get_rules, add_rule or del_rule; those belonged to an earlier version of the extension.

run¶

Runs the rules immediately, without waiting for the daily schedule. It is not impersonated: it runs with the extension's own permissions, and the caller needs ext.request.

Parameter	Type	Required	Description
`rule_name`	string	No	Run only the rules with this name. Without it, every rule runs. A name that no rule has runs nothing.
`continuation_token`	string	No	Used internally to resume a long run. Leave it empty.

Run every rule:

CLIREST APID&R response

limacharlie extension request \
  --name ext-sensor-cull \
  --action run \
  --oid <oid>

curl -s -X POST \
  "https://api.limacharlie.io/v1/extension/request/ext-sensor-cull" \
  -H "Authorization: Bearer $LC_JWT" \
  -d oid="<oid>" \
  -d action="run" \
  -d data='{}'

- action: extension request
  extension name: ext-sensor-cull
  extension action: run
  extension request: {}

Run only the rules named Delete Linux sensors after 120 days:

CLIREST APID&R response

limacharlie extension request \
  --name ext-sensor-cull \
  --action run \
  --data '{"rule_name": "Delete Linux sensors after 120 days"}' \
  --oid <oid>

curl -s -X POST \
  "https://api.limacharlie.io/v1/extension/request/ext-sensor-cull" \
  -H "Authorization: Bearer $LC_JWT" \
  -d oid="<oid>" \
  -d action="run" \
  -d data='{"rule_name": "Delete Linux sensors after 120 days"}'

- action: extension request
  extension name: ext-sensor-cull
  extension action: run
  extension request:
    rule_name: '{{ "Delete Linux sensors after 120 days" }}'

The call returns once the first batch is processed. On a large organization the extension schedules the remaining batches itself.

Permissions summary¶

To	You need
Subscribe or unsubscribe	`ext.sub`
View rules	`ext.conf.get`
Add, edit or delete rules	`ext.conf.set`
Run rules on demand	`ext.request`

See Permissions for the full list.
