Plaso

Plaso Extension Pricing

While it is free to enable the Plaso extension, pricing is applied to both the original downloaded artifact and the processed (Plaso) artifacts -- $0.02/GB for the original downloaded artifact, and $1.0/GB for the generation of the processed artifacts.

About

Plaso is a Python-based suite of tools used for creation of analysis timelines from forensic artifacts acquired from an endpoint.

These timelines are invaluable tools for digital forensic investigators and analysts, enabling them to effectively correlate the vast quantities of information encountered in logs and various forensic artifacts encountered in an intrusion investigation.

The primary tools in the Plaso suite used for this process are log2timeline, psort, and psteal.

• log2timeline - bulk forensic artifact parser
• psort - builds timelines based on output from log2timeline
• psteal - Simply a wrapper for log2timeline and psort

The ext-plaso extension within LimaCharlie allows you to run log2timeline and psort (using the psteal wrapper) against artifacts obtained from an endpoint, such as event logs, registry hives, and various other forensic artifacts. When executed, Plaso will parse and extract information from all acquired evidence artifacts that it has support for. See the Plaso parsers and plugins reference for the full list of supported parsers.

Extension Configuration

Long Execution Times

Note that it can take several minutes for the plaso generation to complete for larger triage collections, but once it finishes you will see the results in the ext-plaso Sensor timeline, as well as the uploaded artifacts on the Artifacts page.

The ext-plaso extension runs psteal (log2timeline + psort) against the acquired evidence using the following commands:

1. bash psteal.py --source /path/to/artifact -o dynamic --storage-file $artifact_id.plaso -w $artifact_id.csv

Upon running psteal.py, a .plaso file and a .csv file are generated. They will be uploaded as LimaCharlie artifacts.

• Resulting .plaso file contains the raw output of log2timeline.py

• Resulting .csv file contains the CSV formatted version of the .plaso file contents

• bash pinfo.py $artifact_id.plaso -w $artifact_id_pinfo.json --output_format json

After psteal.py runs, information is gathered from the resulting .plaso file using the pinfo.py utility and pushed into the ext-plaso sensor timeline as a pinfo event. This event provides a detailed summary with metrics of the processing that occurred, as well as any relevant errors you should be aware of.

The following events will be pushed to the ext-plaso sensor timeline:

• job_queued: indicates that ext-plaso has received and queued a request to process data
• job_started: indicates that ext-plaso has started processing the data
• job_failed: indicates that the processing job failed; the error field contains the reason
• pinfo: contains the pinfo.py output summarizing the results of the plaso file generation
• plaso: contains the artifact_id of the plaso file that was uploaded to LimaCharlie
• csv: contains the artifact_id of the CSV file that was uploaded to LimaCharlie; when timeline ingestion is enabled, it also reports events_sent_to_timeline and rows_skipped
• plaso_event: one event per row of the generated timeline, only when timeline ingestion is enabled (see Timeline Ingestion)

Timeline Ingestion

By default, the generated timeline is only available as downloadable .plaso and .csv artifacts. Setting the optional send_to_timeline parameter to true on a generate request additionally ingests every row of the generated CSV timeline as an individual plaso_event event on the ext-plaso sensor timeline.

Each plaso_event carries the timeline columns under results, including the forensic timestamp (results/datetime), the plaso parser that produced the entry, and the event message. Rows are ingested in chronological order (as sorted by psort), making the full forensic timeline searchable with LCQL and usable in D&R rules. Combined with the automation below, this enables an end-to-end triage workflow — collection, timeline generation, and detection — entirely within LimaCharlie.

Ingestion Volume

A Plaso timeline for a full triage collection can contain hundreds of thousands to millions of rows. Enabling send_to_timeline ingests all of them as events, which is billed as regular event ingestion volume.

Rows of the CSV that cannot be parsed are skipped rather than failing the job; the final csv status event reports how many events were ingested (events_sent_to_timeline) and how many rows were skipped (rows_skipped).

Usage & Automation

LimaCharlie can automatically kick off evidence processing with Plaso based off of the artifact ID provided in a rule action, or you can run it manually via the extension.

Velociraptor Triage Acquisition Processing

If you use the LimaCharlie Velociraptor extension, a good use case of ext-plaso would be to trigger Plaso evidence processing upon ingestion of a Velociraptor KAPE files artifact collection.

1. Configure a D&R rule to watch for Velociraptor collection events upon ingestion, and then trigger the Plaso extension:

Detect:

op: and
target: artifact_event
rules:
    - op: is
      path: routing/log_type
      value: velociraptor
    - op: is
      not: true
      path: routing/event_type
      value: export_complete

Respond:

- action: extension request
  extension action: generate
  extension name: ext-plaso
  extension request:
      artifact_id: '{{ .routing.log_id }}'
      send_to_timeline: true

The send_to_timeline parameter is optional; when set to true, the resulting timeline rows are also ingested as plaso_event events (see Timeline Ingestion).

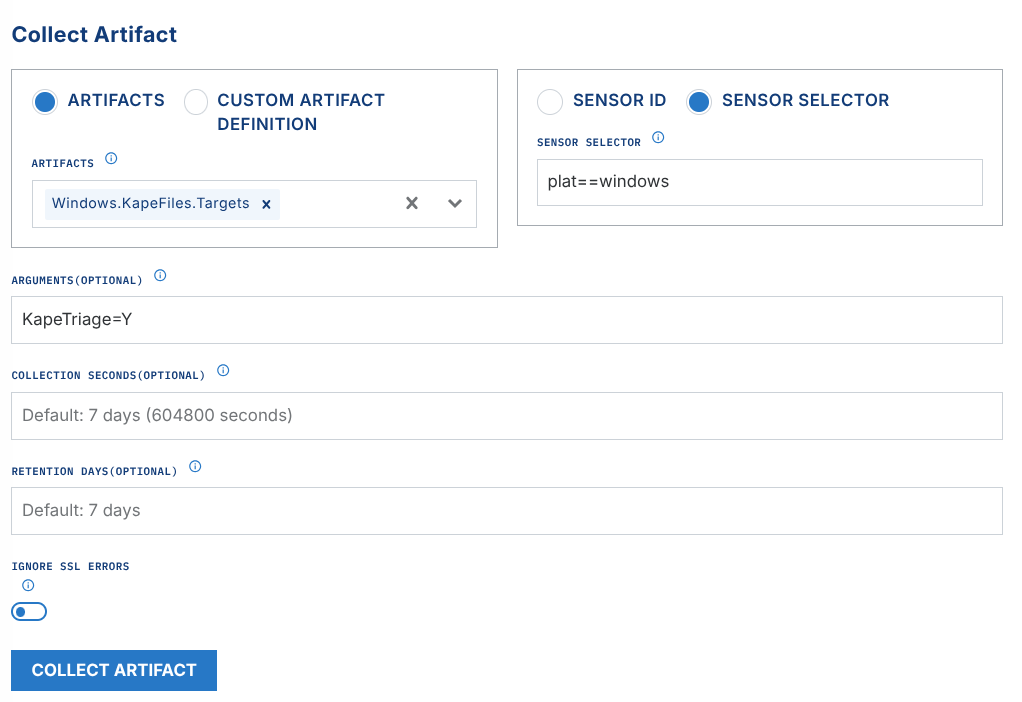

1. Launch a Windows.KapeFiles.Targets artifact collection in the LimaCharlie Velociraptor extension. This instructs Velociraptor to gather all endpoint artifacts defined in this KAPE Target file.

Argument options:

• EventLogs=Y - EventLogs only, quicker processing time for proof of concept
• KapeTriage=Y - full KapeTriage files collection
• Once Velociraptor collects, zips, and uploads the evidence, the previously created D&R rule will send the triage .zip to ext-plaso for processing. Watch the ext-plaso sensor timeline for status and the Artifacts page for the resulting .plaso & .csv output files. See Working with the Output.

MFT Processing

If you use the LimaCharlie Dumper extension, a good use case of ext-plaso would be to trigger Plaso evidence processing upon ingestion of a MFT CSV artifact.

1. Configure a D&R rule to watch for MFT collection events upon ingestion, and then trigger the Plaso extension:

Detect:

op: and
target: artifact_event
rules:
    - op: is
      path: routing/log_type
      value: mftcsv
    - op: is
      not: true
      path: routing/event_type
      value: export_complete

Respond:

- action: extension request
  extension action: generate
  extension name: ext-plaso
  extension request:
      artifact_id: '{{ .routing.log_id }}'

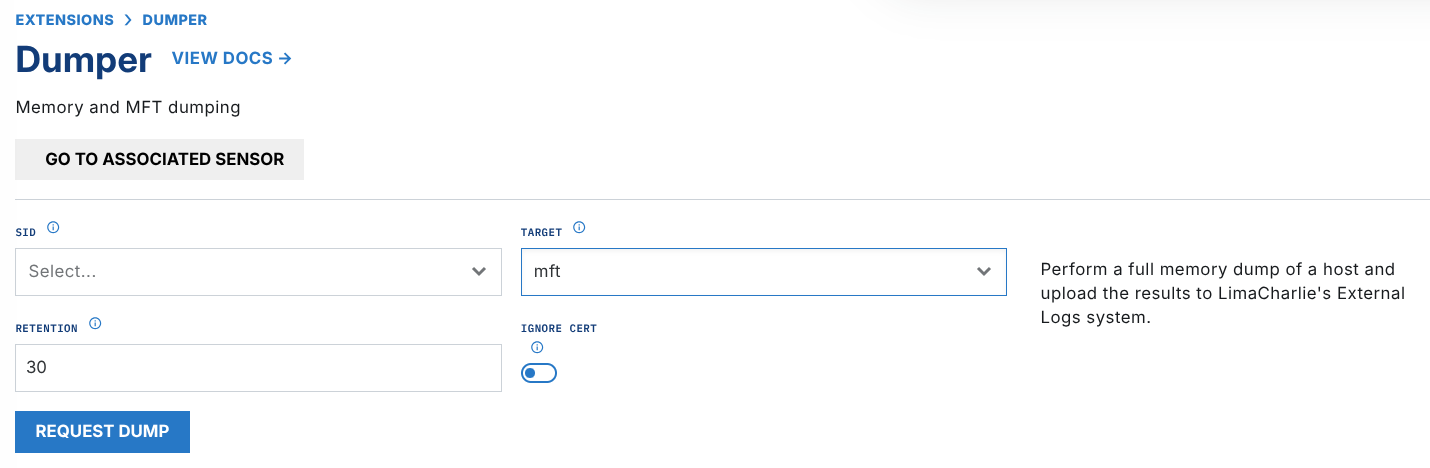

1. Launch an MFT dump in the LimaCharlie Dumper extension.
2. Once dumper is complete and uploads the evidence, the previously created D&R rule will send the zipped MFT CSV to ext-plaso for processing. Watch the ext-plaso sensor timeline for status and the Artifacts page for the resulting .plaso & .csv output files. See Working with the Output.

Working with the Output

Running the extension generates the following useful outputs:

• pinfo on ext-plaso sensor timeline First and foremost, after the completion of a processing job by ext-plaso, it is highly encouraged to analyze the resulting pinfo event on the ext-plaso sensor timeline. This event provides a detailed summary with metrics of the processing that occurred, as well as any relevant errors you should be aware of.

• Pay close attention to fields such as warnings_by_parser or warnings_by_path_spec which may reveal parser errors that were encountered.

• Sample output of pinfo showing counts of parsed artifacts nested under storage_counters -- this provides insight as to which, and how many events will be present in your CSV timeline.

"amcache": 986,
"appcompatcache": 4096,
"bagmru": 29,
"chrome_27_history": 29,
"chrome_66_cookies": 246,
"explorer_mountpoints2": 2,
"explorer_programscache": 1,
"filestat": 3495,
"lnk": 160,
"mft": 4790977,
"mrulist_string": 2,
"mrulistex_shell_item_list": 3,
"mrulistex_string": 5,
"mrulistex_string_and_shell_item": 5,
"mrulistex_string_and_shell_item_list": 1,
"msie_webcache": 143,
"msie_zone": 60,
"networks": 4,
"olecf_automatic_destinations": 37,
"olecf_default": 5,
"recycle_bin": 3,
"shell_items": 297,
"total": 5840430,
"user_access_logging": 34,
"userassist": 44,
"utmp": 13,
"windows_boot_execute": 8,
"windows_run": 10,
"windows_sam_users": 16,
"windows_services": 2004,
"windows_shutdown": 8,
"windows_task_cache": 835,
"windows_timezone": 4,
"windows_typed_urls": 3,
"windows_version": 6,
"winevtx": 382674,
"winlogon": 8,
"winreg_default": 654177

Downloadable Artifacts

• plaso artifact The downloadable .plaso file contains the raw output of log2timeline.py and can be imported into Timesketch as a timeline.
• csv artifact The downloadable .csv file can be easily viewed in any CSV viewer, but a highly recommended tool for this is Timeline Explorer from Eric Zimmerman.

Timeline Events

If the request was made with send_to_timeline: true, the full timeline is also available as plaso_event events on the ext-plaso sensor timeline, where it can be explored chronologically, queried with LCQL, and matched by D&R rules. See Timeline Ingestion.
