Building the User Interface

Auto Generated UI

The Extensions UI uses the information provided in the schema to auto-determine it's UI elements, and for most simple extensions, the UI will be able to auto conform based on the bare minimum schema definition alone. However, further customization may be made in the schema for more complex or specific use cases by adjusting the layout, or adjusting the details for a specific field.

Deconstructing the Page

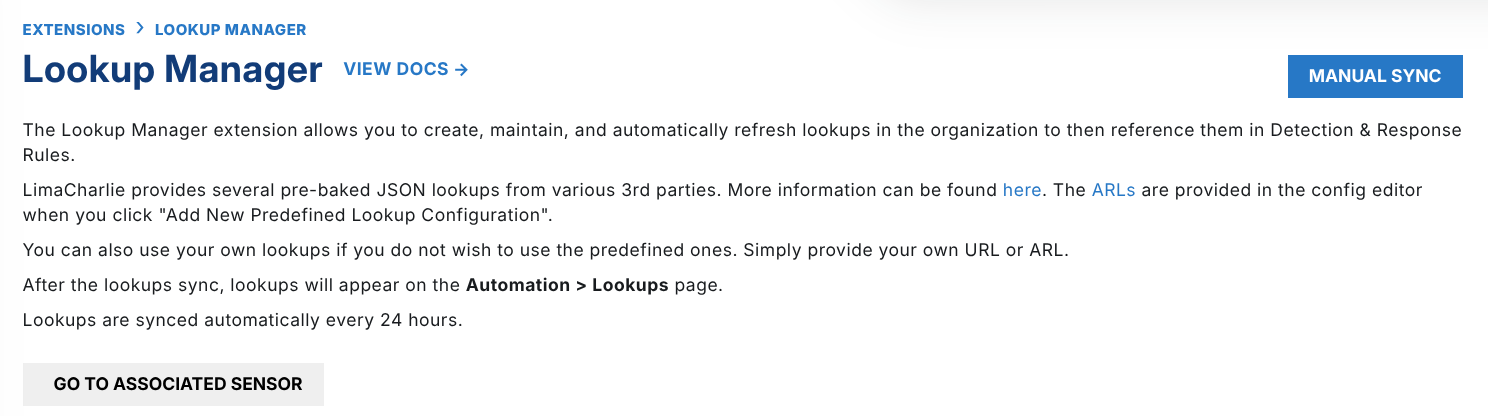

Generally the top of the extension page will show the extension label and it's short description. If it exists, it will also show a button for quick access to this extension's "associated sensor".

ext 1

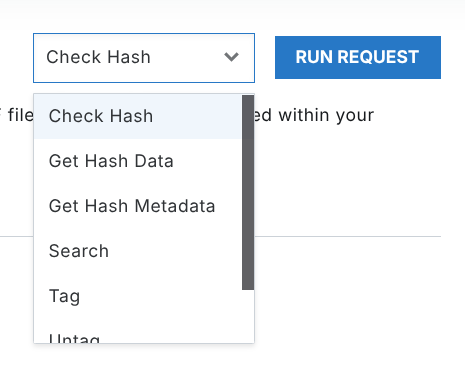

In the top right, any actions (as defined in your request schema) will be displayed as a dropdown and button. ext 2

Note that there are small changes to this structure depending on the layout selected, however all variations should be intuitive as they do not deviate much from this general page structure. Beyond this, main content of the page is determined by the layout.

Picking Your Layout Type

  • auto — the default; picks one of the below for you
  • default — renders a default action's response, typically as a table
  • config — use this if you have a configuration
  • editor — for editing large code blocks such as YAML
  • action — use this to prioritize certain actions in the UI
  • description — renders the action's long description as Markdown, for context
  • key — a variation of description that shows the configuration below it, for a small number of config fields

For the action, and editor layouts, make sure you define one (or more) default actions as well. The editor UI for the action layout will show all the actions in-page, as opposed to a button on the top right. When set to the editor layout, the UI will automatically run the default action and display the results and a supported action.

Form Data Types

Every field has the following optional details to further adjust the UI.

  • label: Add a label if you want a more 'human-legible' label on this field
  • placeholder: Placeholder text on the input can serve as an example for the user
  • description: A description for this field can be added that will be available as a tooltip on the UI next to the field label
  • display_index: The display index starts at 1 (not 0) and guides the GUI on the order to show the fields. A display index of 1, will display before a display index of 2. A 0 is indistinguishable from an unset value once the schema is serialized, and unset fields sort last
  • default_value: A default value for the field. The UI pre-populates it, and the platform fills it in server-side when the field is absent from a request
  • required: Marks the field as required in the UI. This complements the schema-level requirements array, which is what the platform actually enforces

Some other configurations that conditionally apply to specific data_types:

  • filter: Input constraints on select primitive data_types. These shape the form only — they are not enforced by the platform, and do not apply to requests from D&R rules, the API or the CLI.
  • enum_values: Details on the available enums, to support the enum data type.
  • complex_enum_values: Details to support the complex enum data type. Supports reference links, and categories.
  • object: An object that contains nested key-value pairs for more fields, and serves to detail the nested fields.

For the complete list of all data types, please see the page on data types.

Nuanced Usage

If your extension requires it, there are more opportunities to adjust the UI in order to better guide or facilitate a user on using your extension.

Multiple Layouts as Tabs

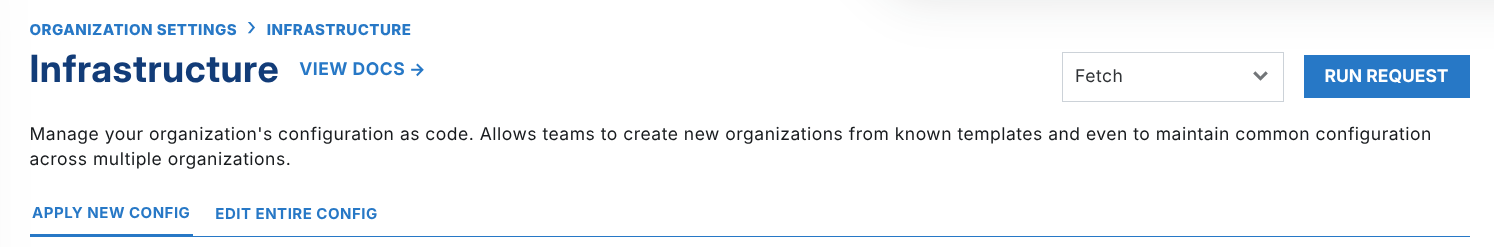

In the schema, it is possible to define several views to utilize a combination of layout types. This may be useful in order to guide a user on how you want them to use your extension. ext 3

Setting Supported Actions

Supported actions are tied to a request's response. They let the response data be modified and passed along to a follow-up action, rendered as buttons on the result. This is useful for a dry run that a user then confirms, or for chaining into a workflow.

Functionality for this field is set to be expanded in the future. Reach out on the community forum if you would like to stay up to date on it.
